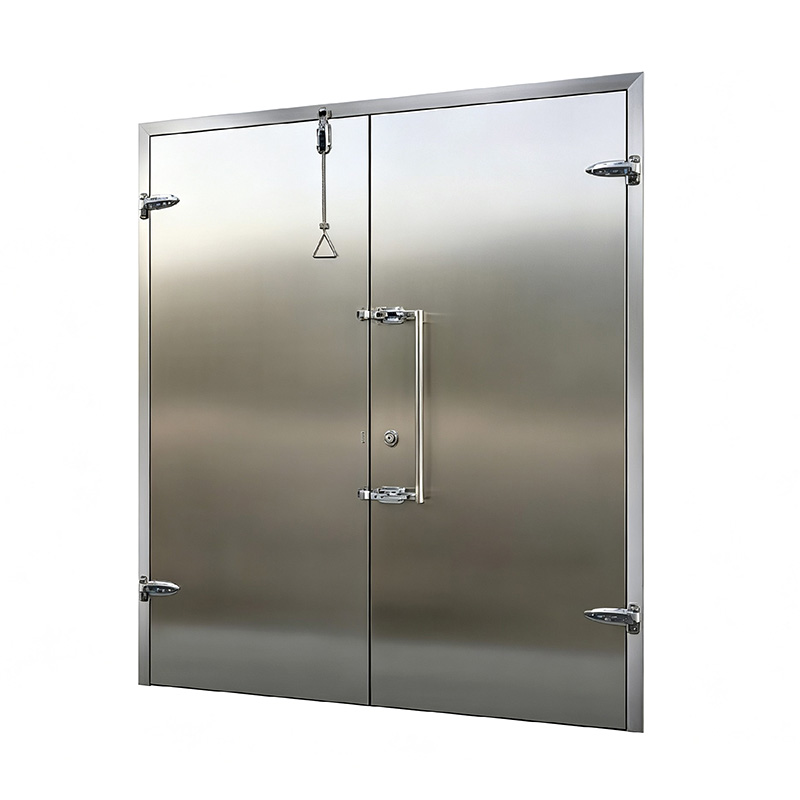

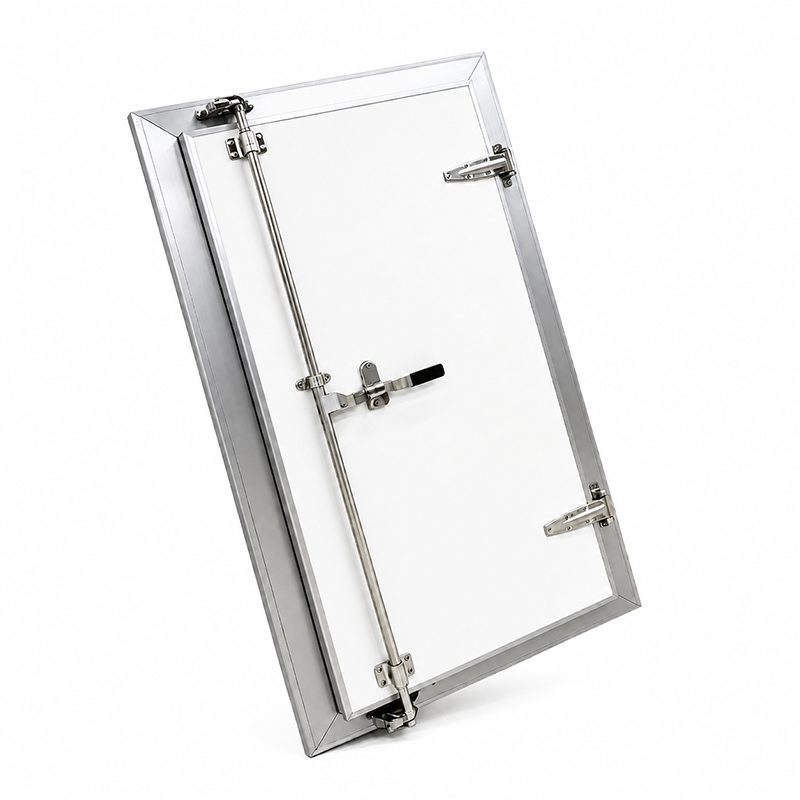

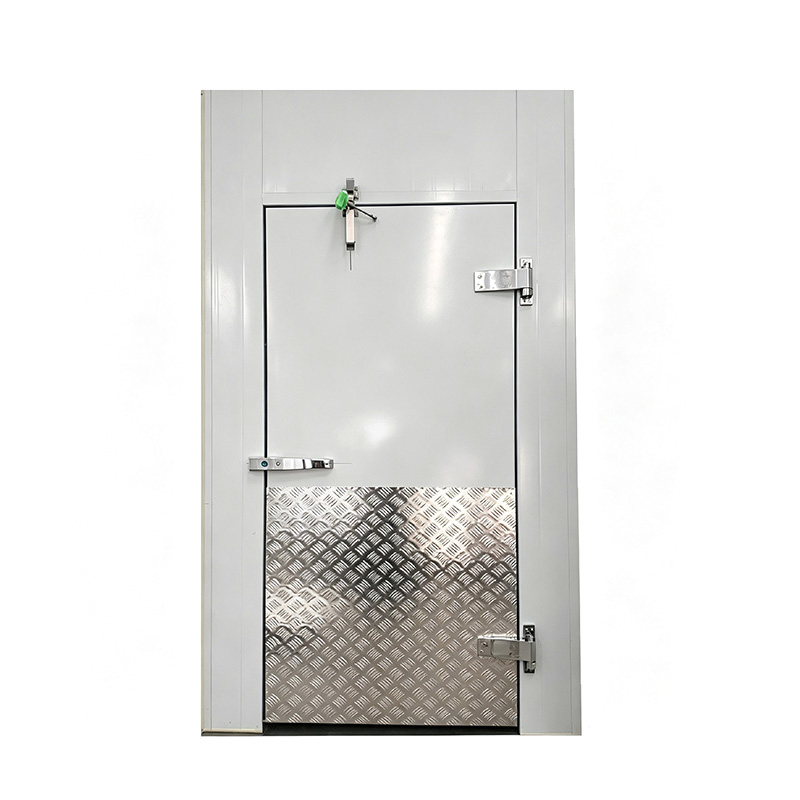

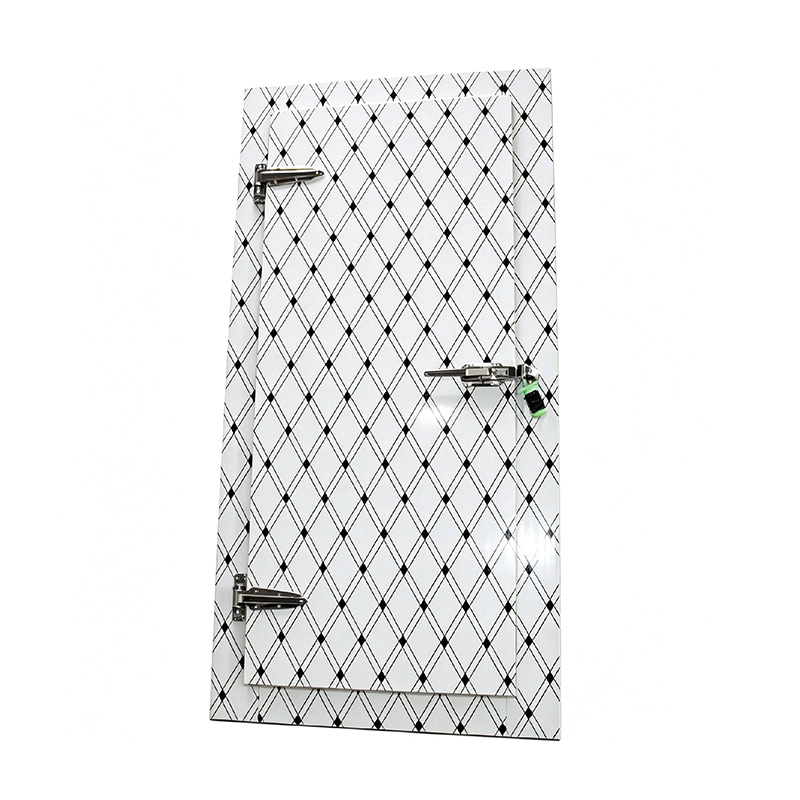

Insulated Hinged Cold Room Door with Locking Handle and Seal

The Cold Room Hinged Door is designed for small and medium-sized cold rooms requiring excellent insulation performance, reliable sealing, and convenient operation.

With a high-density PU insulation core, corrosion-resistant metal surface, and durable frame structure, it effectively reduces heat transfer and cold air leakage, helping maintain stable temperature conditions inside the cold room.

Equipped with a magnetic sealing strip, the door provides reliable airtight performance and minimizes cooling loss during frequent opening and closing.

Inquiry

Write a Review

Parameters of hinged door

Information Category	Detailed Information
Temperature of cold room	-45℃~+50℃
Applicable industry	Retailing, Storage, Food, Medical industry, etc.
Surface metal of door panel	PPGI/Color steel, stainless steel, etc
Inside material	Environmental PU with high density and fire resistance
Thickness of door panel	100mm, 150mm
Size of door opening	Customized
Way of opening	Left-open, Right-open, Double-open
Safety lock	For escape from a cold room
Sealing strip	Magnetic strips inside soft plastic for good sealing
Electric heating wire	For preventing frosting of low temperature cold rooms
Observation window	For observing the situation inside the cold room (optional)

单开半埋门

单开全埋铰链门

双开半埋门

双开全埋门

单开半埋铰链门 (4)

单开半埋铰链门 (2)

Features & Advantages

• Excellent Insulation: PU foam core reduces heat transfer and cooling loss.

• Reliable Sealing: Magnetic gasket improves airtightness and prevents cold air leakage.

• Flexible Options: Available in different sizes, materials, and opening directions.

• Safe Operation: Emergency release lock ensures personnel safety.

• Easy Installation: Supports half buried and all buried door designs for different project needs.

Why Choose Hinged Doors

• Simple Structure with High Reliability

• Consistent and Stable Sealing Performance

• Safety Compliance with Emergency Escape Feature

• Easy Installation and Low Maintenance

Product features and comparison

Half Buried Door vs. All Buried Door – Comparison

Comparison Item	Half Buried Door	All Buried Door
Frame Installation	Frame mounted on panel exterior, partially exposed	Frame fully embedded into panel structure
Post-Installation Appearance	Frame clearly visible, solid and robust	Door perfectly flush with wall, smooth and modern
Sealing Performance	Gasket exposed for easy inspection and maintenance	Even compression around full perimeter, stable and reliable
Thermal Insulation	Frame provides structural reinforcement for effective insulation	Cold bridge-free design for superior energy efficiency
Installation Complexity	High tolerance for cutout dimensions, quick installation	Requires precise installation, flawless finished result
Suitable Applications	Standard commercial cold rooms, time-sensitive projects	Premium food cold chain, pharmaceutical storage, cleanrooms

product display

单开铰链门 (2)~1

自由门1~1

单开铰链门

船用门

铰链门~1

双开半埋门 (2)
