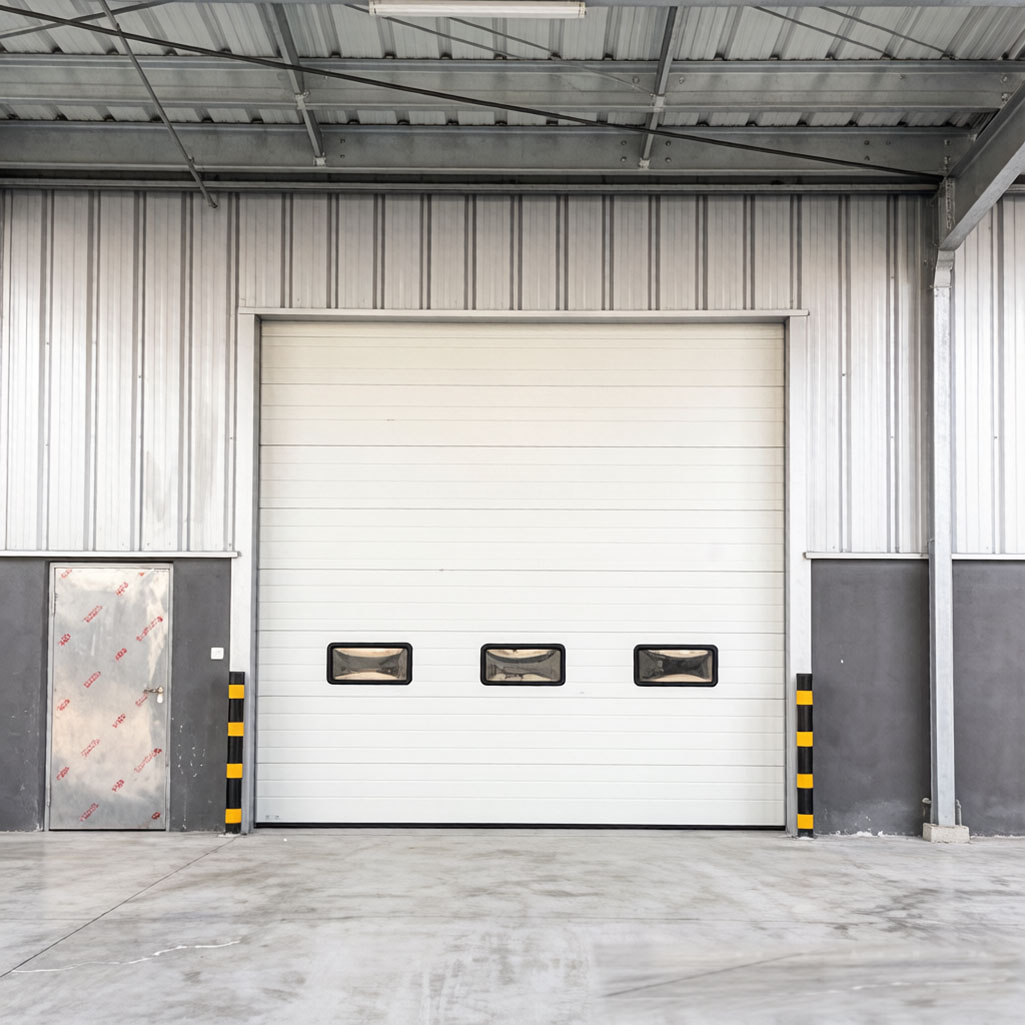

Industrial Sectional Cold Room Door with Insulated Panel Design
The Industrial Sectional Door is designed for industrial buildings, warehouses, and large access openings where insulation, safety, and durability are required. The door panel adopts a 0.5mm color steel surface sheet with 43kg/m³ high-density PU foam core , providing excellent thermal insulation and structural strength.
The anti-cold-bridge design reduces heat transfer between internal and external surfaces, preventing freezing issues caused by cold bridges. Combined with sealing strips around the panel, it improves airtightness and weather resistance.
Product Info Sheet
| Panel Thickness | 40 mm |
| Face Sheet Thickness | 0.5 mm |
| Foam Density | 43 kg/m³ |
| Thermal Conductivity | 0.38 W/(m·°C) |
| Sound Insulation | 24 dB |
| Wind Load Resistance | Class 3 (EN 13241-1 European Standard), equivalent to Class 11 under Chinese National Standard |
| Water Tightness | 30 Pa |

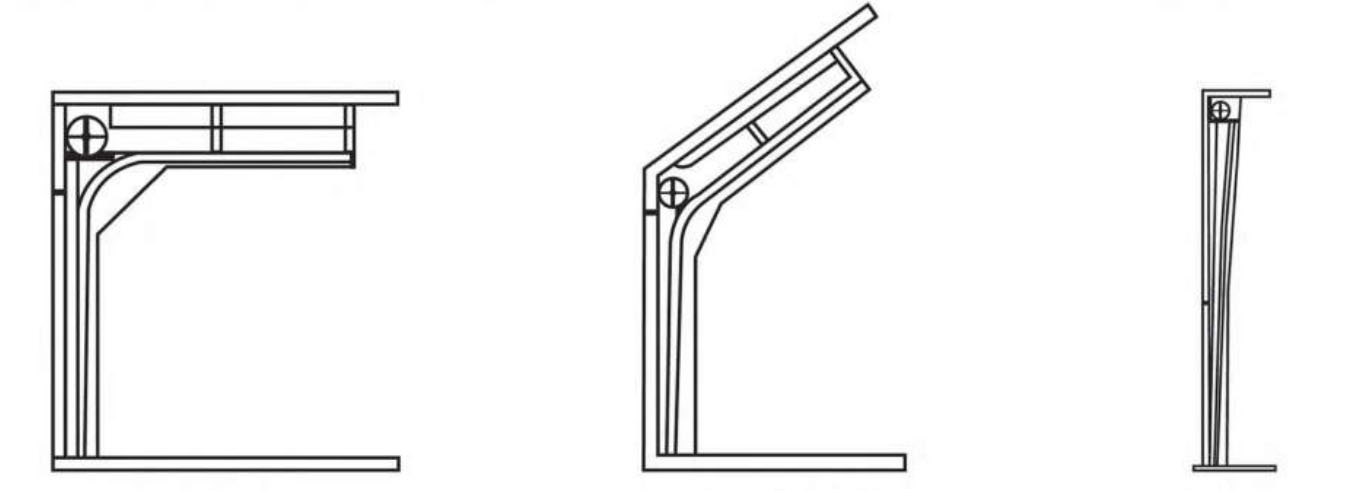

Industrial door lifting methods
The door is available with standard lifting, standard inclined lifting, and vertical lifting configurations to accommodate different opening heights and site layouts
• High Insulation Performance: 43kg/m³ PU foam core and anti-cold-bridge design reduce heat loss and improve energy efficiency.
• Advanced Safety System: Equipped with NFMG springs, safety wire ropes, anti-break protection, and bottom safety devices.
• Strong Weather Resistance: Meets Class 3 wind load resistance (EN 13241-1) and 30Pa water tightness performance.
• Durable Structure: 0.5mm color steel panel provides high strength and long service life.· Reliable Industrial Use: Designed for frequent operation in demanding environments.
• Reliable Industrial Use: Designed for frequent operation in demanding environments.

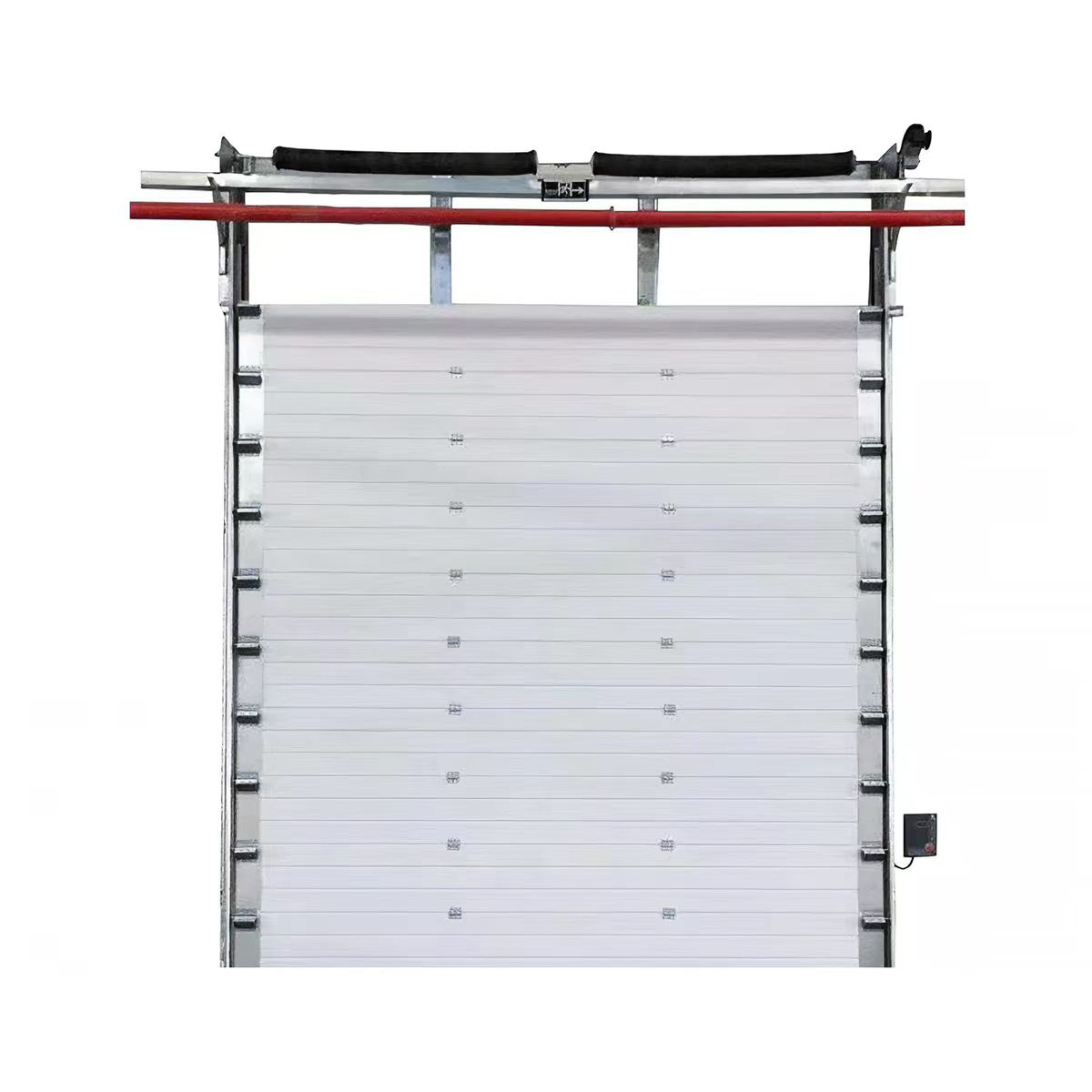

product display
Colors & Applications
Offered in a wide selection of optional colors, it is well suited to applications such as loading docks and industrial door seals, among other industrial environments.
